Transparent Gauge Glass Used in Industry Pipe

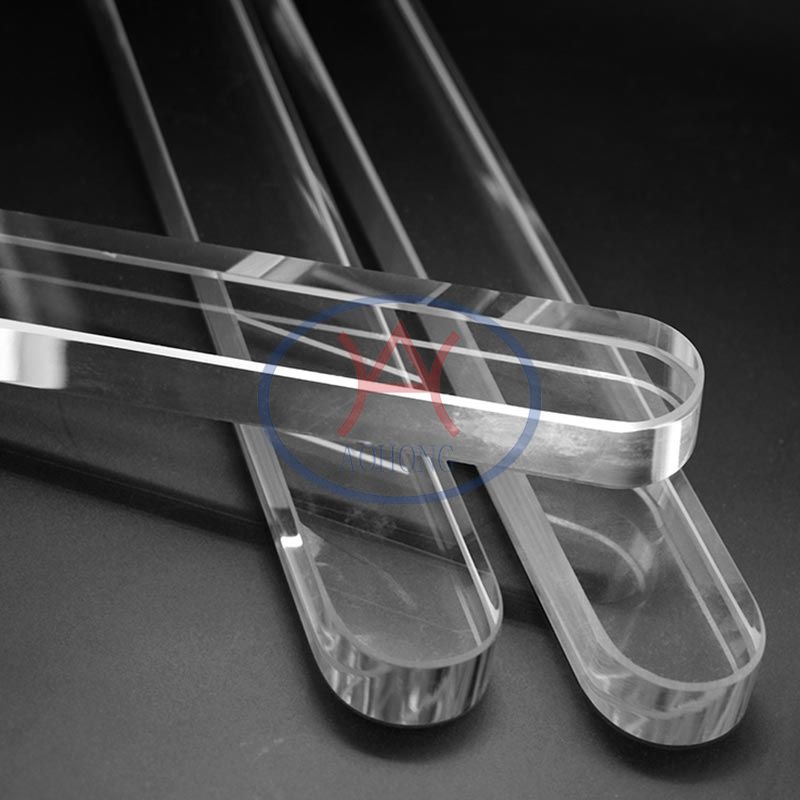

Transparent gauge glass, also called transparent sight glass, transparent level glass and transparent level gauge, is usually made of borosilicate glass and aluminosilicate glass. The glass is manufactured into the strip shape and used in boiler or some instruments for observing the liquid level.

Transparent type is also manufactured from "extra-hard" borosilicate glass. The surfaces on both sides are finely smooth and  ensure optimal transparency.


A) One is as same with reflex Gauge Glasses,use molds to make the semi-finished products,afterwards,ground and polish the two side to ensure optimal transparency. By this manufacturing technique,the definition isn't good.


B)The other manufacturing technique is made of High Borosilicate sheet of 17mm thickness, cut the glass sheet according the detailed size and polish the side face for the smooth.This manufacturing technique glass is very clear,but the goods cost is higher.


It can be used with all media at service conditions up to 6MPa and temperatures up to 430 degrees centigrade.


Transparent Gauge Glass Used in Industry Pipe


SIZETypeAWeight

LBSg/piece
0
I1153017118
II1403017146
III1653017176
IV1903017200
V2203017237
VI2503017265
VII2803017303
VIII3203017334
IX3403017359
X3703017391
SIZETypeBWeight
LBSg/piece
0953417110
I1153417132
II1403417162
III1653417195
IV1903417228
V2203417264
VI2503417301
VII2803417338
VIII3203417387
IX3403417410
X3703417461


Green Plain Gauge Glass


Transparent Gauge Glass Used in Industry Pipe


This green gauge glass is a kind of used in the field of petroleum, chemical industry, metallurgy, electric power, food, medicine.

In the other two sides fired green glass glaze. According to the optics refraction principle, in the absence of liquid, from the glass facade, can clearly see the green color on the surface. When the fluid in the liquid level meter, the refractive index of glass and liquid is the same, the color will not be reflected, can see the white.

The sizes are all customized according to clients' requests.
