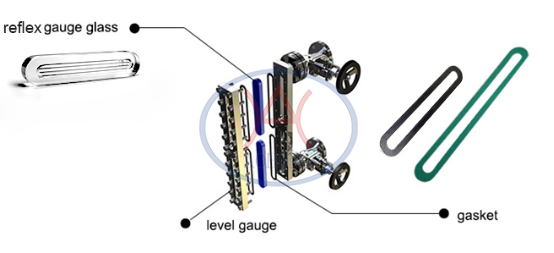

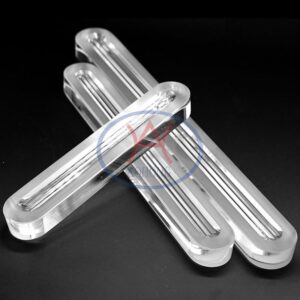

(Boiler Reflex Sight Glass / Reflex Level Gauge Glass)
Product Overview
The Reflex Gauge Glass for boilers is essential for water level gauges. It shows clear and accurate liquid levels, even in tough conditions. Made from high-quality borosilicate glass, this reflex glass has a prismatic surface. This design creates a strong contrast between steam and water. This helps you read the water level accurately.
Reflex gauge glass outperforms traditional flat glass. It can withstand high pressure—up to 25 MPa—and thermal shock, reaching 300 °C. This makes it ideal for industrial boilers, where safety and reliability are crucial.

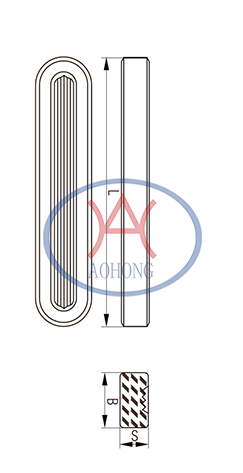

| Size | Type A | ||
| L | B | S | |
| 0 | – | – | – |
| I | 115 | 30 | 17 |
| II | 140 | 30 | 17 |
| III | 165 | 30 | 17 |
| IV | 190 | 30 | 17 |
| V | 220 | 30 | 17 |
| VI | 250 | 30 | 17 |
| VII | 280 | 30 | 17 |
| VIII | 320 | 30 | 17 |
| IX | 340 | 30 | 17 |
| Size | Type B | ||
| L | B | S | |
| 0 | 95 | 34 | 17 |
| I | 115 | 34 | 17 |
| II | 140 | 34 | 17 |
| III | 165 | 34 | 17 |
| IV | 190 | 34 | 17 |
| V | 220 | 34 | 17 |
| VI | 250 | 34 | 17 |
| VII | 280 | 34 | 17 |
| 300 | 34 | 17 | |
| VIII | 320 | 34 | 17 |
| IX | 340 | 34 | 17 |
| X | 370 | 34 | 17 |
| XI | 400 | 34 | 17 |
E-E-A-T Statement
We supply high-quality industrial sight glasses. This includes reflex gauge glass for boilers. We have more than 15 years of experience in power plants, chemical industries, and boiler manufacturing. This expertise helps us ensure our products meet strict safety and quality standards. Our processes are ISO 9001 certified.
Key Features and Benefits
High Pressure Resistance
Reflex gauge glass can handle boiler pressures up to 25 MPa (PN250). This ensures it remains durable and safe during high-pressure operations.
Excellent Thermal Shock Resistance
It can quickly change temperatures up to 300°C. This prevents cracks and failures during boiler startups and shutdowns.
Superior Visibility and Contrast
The prismatic surface reflects light in unique ways for steam and water. This creates a strong black and silver contrast. It helps measure water levels accurately.
Chemical and Corrosion Resistance
Made from borosilicate glass, it resists chemical corrosion. This includes damage from boiler water additives and steam condensate.
Applications
-
Industrial boilers in power generation plants
-
Chemical processing boilers
-
Steam generators
-
Thermal power plants
-
Heating and hot water systems
-
Petrochemical industry boilers
Technical Specifications
| Specification | Details |
|---|---|
| Glass Type | Borosilicate Reflex Glass |
| Thickness | 6 mm, 8 mm, 10 mm (custom) |
| Maximum Pressure | Up to 25 MPa (PN250) |
| Maximum Operating Temperature | Up to 300°C |
| Thermal Shock Resistance | ≥ 300°C |
| Dimensions (Width × Height) | Customizable; typical sizes below |
| Light Transmittance | ≥ 90% |
| Surface Finish | Prismatic (reflex) |
📥 Download Technical Datasheet (PDF)
Common Sizes and Dimensions
| Thickness (mm) | Width (mm) | Height (mm) | Remarks |
|---|---|---|---|
| 6 | 40 | 150 | Standard small size |
| 8 | 50 | 200 | Most commonly used |
| 10 | 60 | 250 | Heavy-duty applications |
| Custom | Custom | Custom | Available on request |
📥 Download Size Chart (PDF)
Installation and Maintenance Tips
-
Ensure gasket compatibility with borosilicate glass to avoid leakage
-
Regularly inspect for scratches or cloudiness affecting visibility
-
Replace glass immediately if cracks or chips appear
-
Follow boiler manufacturer guidelines for bolt torque on sight glass frames
-
Use appropriate cleaning agents to avoid damaging the prismatic surface
Why Choose Our Reflex Gauge Glass?
-
Manufactured under strict ISO 9001 quality control
-
Proven performance in demanding boiler environments worldwide
-
Custom sizing and thickness available for diverse boiler models
-
Professional technical support and quick delivery
-
Competitive pricing for bulk and OEM orders
